Machinery
Machining center
TAJMAC – ZPS Zlín a.s. MCFV2080
| Axes: | X = 2 030 mm, Y = 810 mm, Z = 810 mm |
| Precision: | 0,006 mm |
| Spindle: | ISO 50, 8 000 revolutions/minute, 26 kW, 760 Nm |
| Max. table load: | 3 000 kg |
| Coolant trough spindle: | 55 Bar |
TAJMAC – ZPS Zlín a.s. MCFV1680
| Axes: | X = 1 650 mm, Y = 810 mm, Z = 810 mm |
| Precision: | 0,006 mm |
| Spindle: | ISO 50, 8 000 revolutions/minute, 26 kW, 760 Nm |
| Max. table load: | 2 500 kg |
| Coolant trough spindle: | 55 Bar |

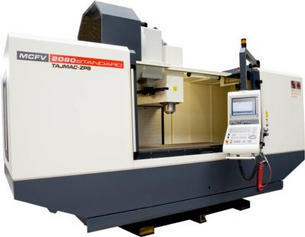

TAJMAC – ZPS Zlín a.s. MCFV2080

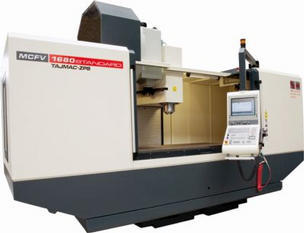

TAJMAC – ZPS Zlín a.s. MCFV1680
Horizontal machining center
KITAMURA Mycenter-HX630iTGA
| Axes: | X = 1 050 mm, Y = 850 mm, Z = 900 mm, 4. axis (turntable 0,001 - 360°) |
| Precision: | 0,005 mm |
| Spindle: | ISO 50 BIG Plus, 12 000 revolutions/minute, 26 kW, 380 Nm |
| Table work Area: | 630 x 630 mm |
| Max. table load: | 1 200 kg |
| Max. workpiece size: | 1 000 mm, length 1 100 mm |
| Coolant trough spindle: | 70 Bar |
KITAMURA Mycenter-HX630iTGA
Automatic saw
Conventional milling machines, grinders etc.
